NorthStar Brick Alchemy · Kinematics · Optical Mosaics · Timeless STEM
Where a 55-gallon warehouse tote of mixed interlocking bricks becomes a mechanical engineering laboratory, a cooperative Great Ball Contraption (GBC) relay, and backlit cathedral stained glass.
Master the Module m=1.0mm pitch law, compound gear reductions, self-locking worm winches, Willis planetary differentials, 4-slot Geneva indexers, Klann walking spiders, and the frozen 48×48 GBC standard.
Build cathedral-grade backlit windows and freestanding below-5V LED shrine lanterns using 100% catalog-confirmed translucent tiles (98138), plates (3024), gems (30153), and crystals (30385).
A perennial family and homeschool curriculum uniting axial obliquity (23.44°), solar gnomons, Snell’s Law prism optics, Eulerian Kolam graph theory, Fibonacci conifer botany, and eight world traditions of light.
Interactive Kinematics Bench · Module m = 1.0 mm · 1 Stud = 8.0 mm

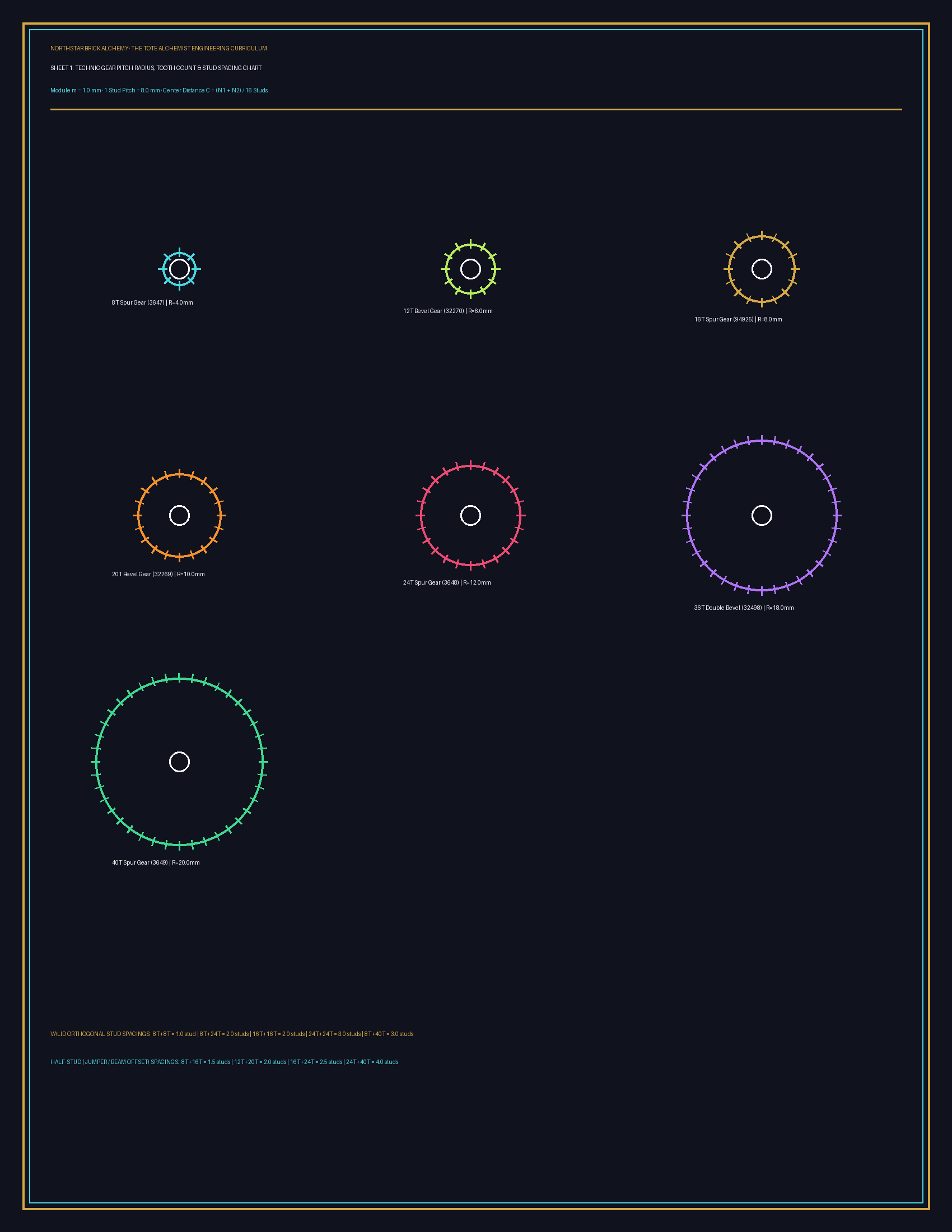

Because modular Technic gears use a metric module of m = 1.0 mm (pitch diameter in millimeters equals tooth count N) and beam holes sit on an 8.0 mm (1-stud) grid, the exact center-to-center spacing in studs between two meshing gears is C = (N₁ + N₂) / 16. Test any driver, driven gear, and stage count below:
The 55-Gallon Warehouse Tote Codex · 28,544 Historical Sets Indexed
Sorting a massive mixed brick collection by color hides geometry; sorting by mechanical and optical function (Rotational Kinematics, Linkages, SNOT Inversion, Translucent Optics, and GBC Ball Transport) unlocks immediate invention. Select a signature tote preset below to inspect its vintage set lineage and synthesized hybrid machines:
Combines 1993 Ice Planet 2002 (6983-1 Ice Station Odyssey), 1995 Aquazone Neptune Discovery Lab (6195-1), 1998 Hydronauts Hydro Crystallisation Station (6199-1), and 2010 Portal of Atlantis (8078-1) into deep-ocean pressure domes, trans-neon canopies, and articulated crystal-harvesting winches.
| Hybrid Blueprint | Source Lineage | Primary Kinematic Mechanism | Engineering Function |
|---|---|---|---|
| Cryo-Hydro Deep Submersible Rig | 6983-1 + 6195-1 + 6199-1 | 1:3 Bevel Winch + Grabber Claw | Amphibious core-drilling bathysphere with octagonal neon viewports |
| Neptune Crystal Centrifuge & Sorter | 6195-1 + 6199-1 + Crystal Golems | Willis Planetary Differential | Splits rotary drive between a translucent crystal carousel and dual ball chute |
| Ice Station Odyssey Geneva Radar | 6983-1 + 6977-1 + Trans-Neon | 4-Slot Geneva Indexer (3:1 Dwell) | Steps a parabolic telemetry dish in crisp 90° quadrants every 4 seconds |
Ardentilaterum · Optical Mosaic & Shrine Lantern Studio
Every blueprint in the Ardentilaterum studio is validated via BRICK_MOC/tools/validate_bom.py against the Rebrickable historical inventory catalog with status COMBINATION_CONFIRMED (zero unverified part+color pairs). Matte-black plates (3024 / 3022) and pearl-gold accents (98138 Color 297) form high-contrast structural leading around translucent polycarbonate cells.

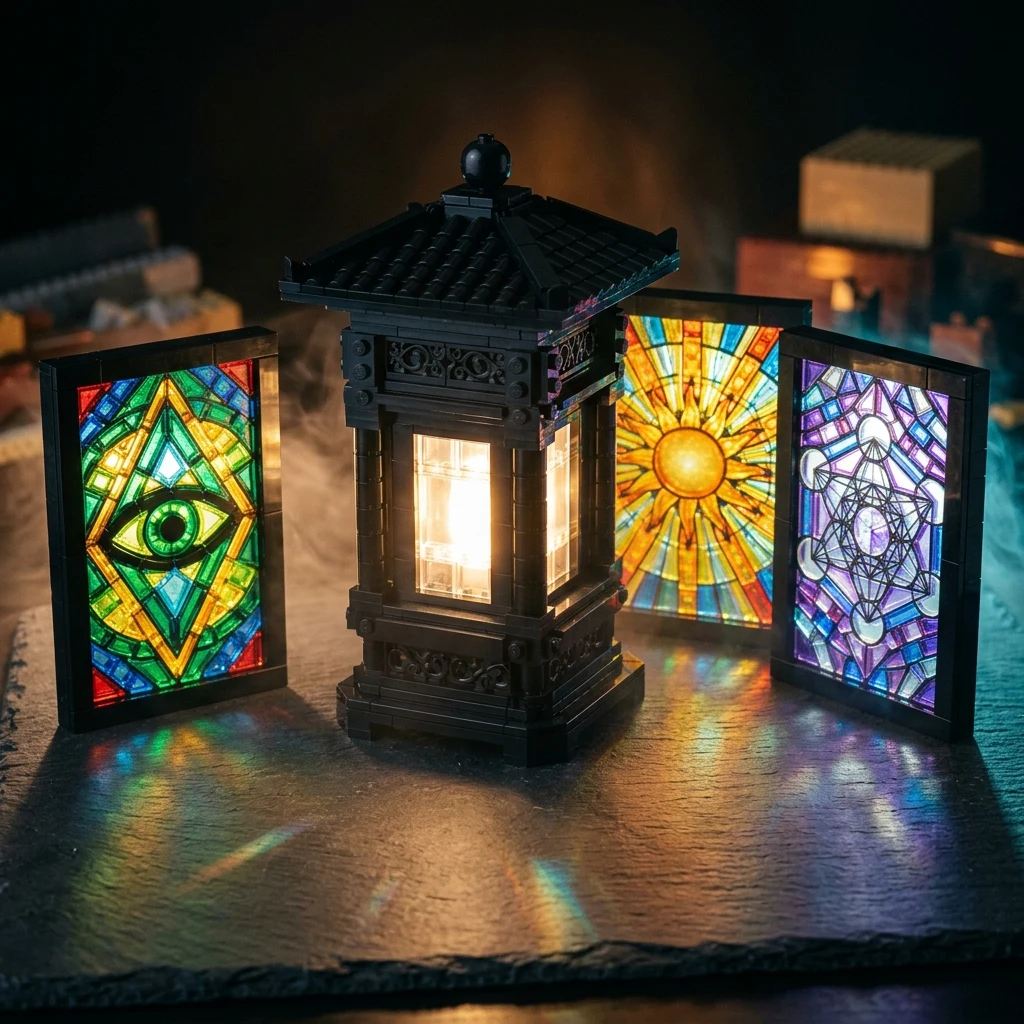

Freestanding shrine lanterns follow the L00–L80 submodel architecture: a load-bearing matte-black frame (L30), removable jumper-retained roof (L60), and an isolated below-5V dry USB LED diffuser cassette (L20) spaced 20 mm behind the mosaic face for uniform Lambertian glow.

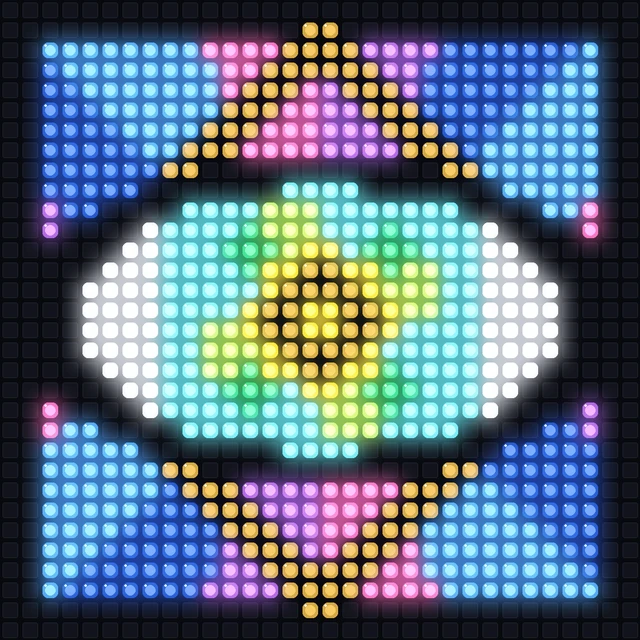

Blueprint 01 · 32×32 Studs · 1,144 Parts
Concentric emerald iris, cyan diamond ring, and ruby/violet outer rays framed in matte-black and pearl-gold leading.

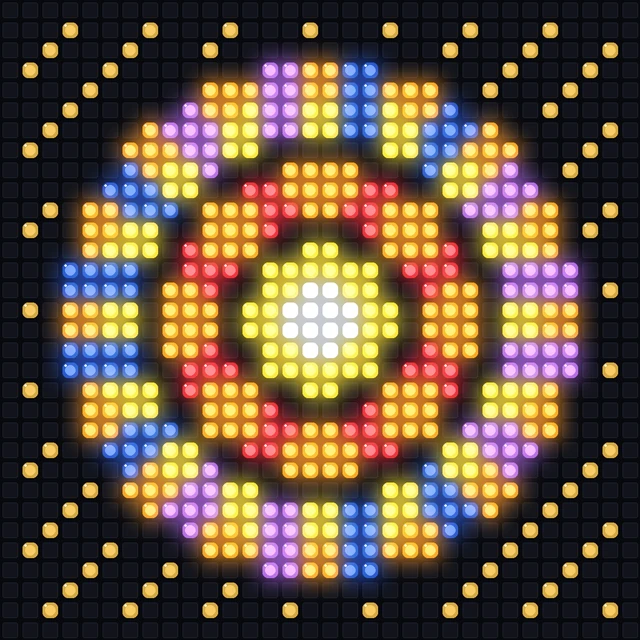

Blueprint 02 · 32×32 Studs · 1,144 Parts
Eight-fold cathedral rose window celebrating the returning sun over a deep indigo and sapphire solstice horizon.
Blueprint 03 · 32×32 Studs · 1,144 Parts
Sacred hexagonal and octagonal crystal lattice in trans-purple, trans-cyan, and pearl-gold nodes.

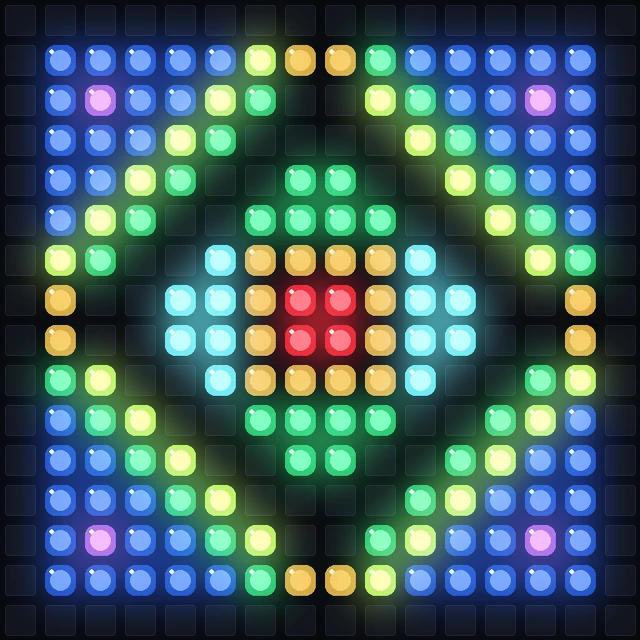

Blueprint 07 · 16×16 Studs · 376 Parts
Serviceable front mosaic pane engineered for the freestanding L00–L80 tabletop shrine lantern.
VORATH 500K Master Architecture · 22-Module Planning Baseline
Our flagship multi-table planning architecture organizes a 22-module, three-tier crystalline diorama around a frozen 48×48 stud modular footprint contract: left-side input hopper (≤10×10 studs, ≤10 bricks high), right-side discharge chute (≥11 bricks high), average throughput of 1.0 ball/second (30-ball max batch), and 100% dry separation between Powered Up / SPIKE electronics and any optional sealed water basin.
Phased reciprocating stepped lift with gravity-fed left hopper and hinged jam-clear gate.
Internal screw/auger column raising 14mm spheres through a guarded translucent crystal tower.
Serpentine gravity ramp creating a visual fold while preserving strict Left-to-Right module handoff.
Indexed diverter gate and ball counter with dry optical sensing and automatic safe-route bypass.
Reversing crank-slider shuttle bridge with physical dock-confirmation interlock across a canyon gap.
Passive bistable tipping-bucket escapement engineered to buffer a full 30-ball batch dump safely.
Open Studio Resources · Zero Account Required

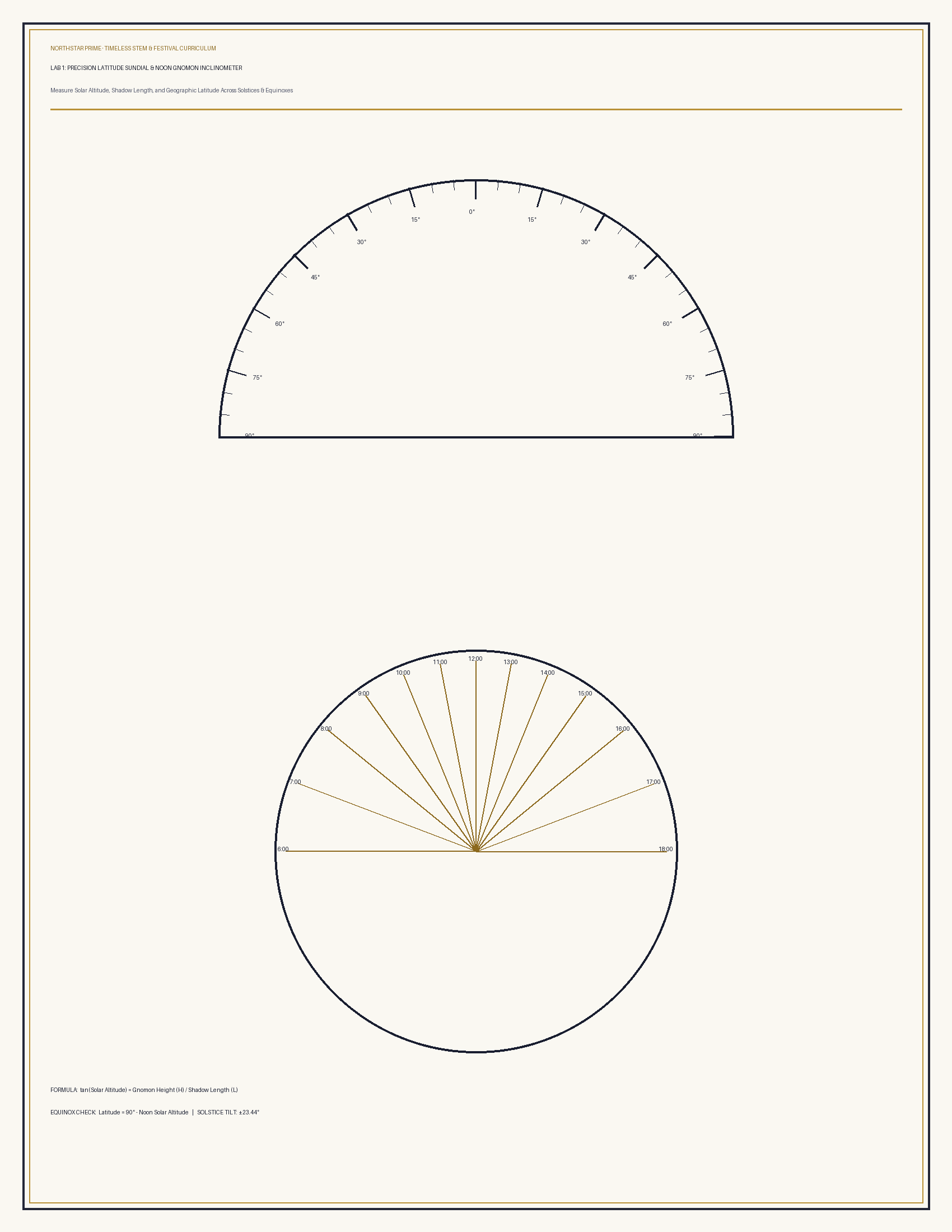

Download high-resolution engineering reference charts, astronomy inclinometer templates, and Rebrickable/BrickLink-compatible CSV & JSON Bills of Materials right from this page:
REAL_PARTS_ONLY_POLICY.md (DESIGN_CONFIRMED for part geometry and COMBINATION_CONFIRMED for verified historical part+color combinations; always run live stock verification before marketplace ordering). Concept illustrations represent artistic studio direction; printable coordinate maps and BOM tables specify exact discrete part counts.
